YG Acoustics Titan

Please select an option

YG Acoustics’ Titan is from their Ultimate Range, unveiled in 2025.

Following three years of dedicated development, YG Acoustics present Titan, their most ambitious loudspeaker to date. Titan represents their collective vision, designed not just to demonstrate their latest innovations but to connect listeners deeply and intimately with their music, surpassing expectations and creating experiences filled with genuine emotion.

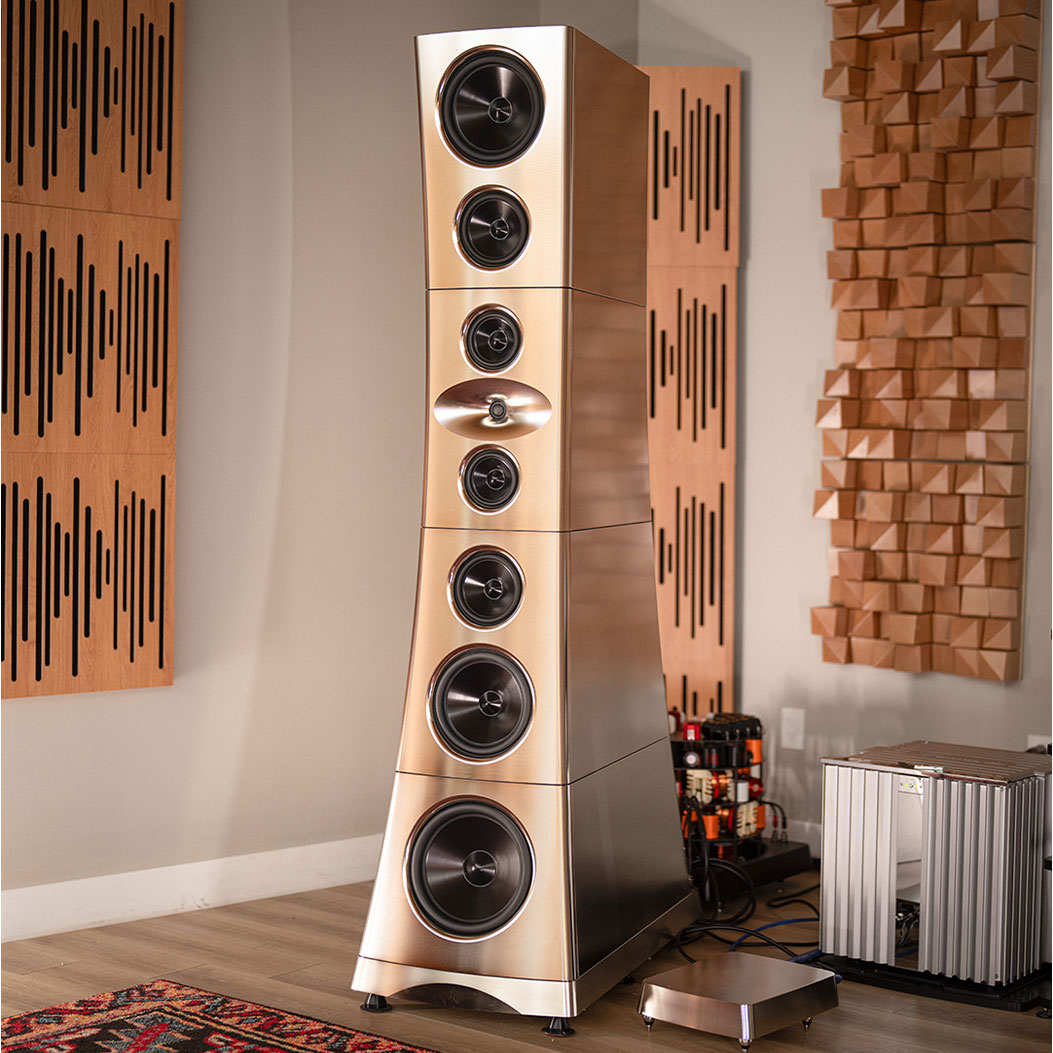

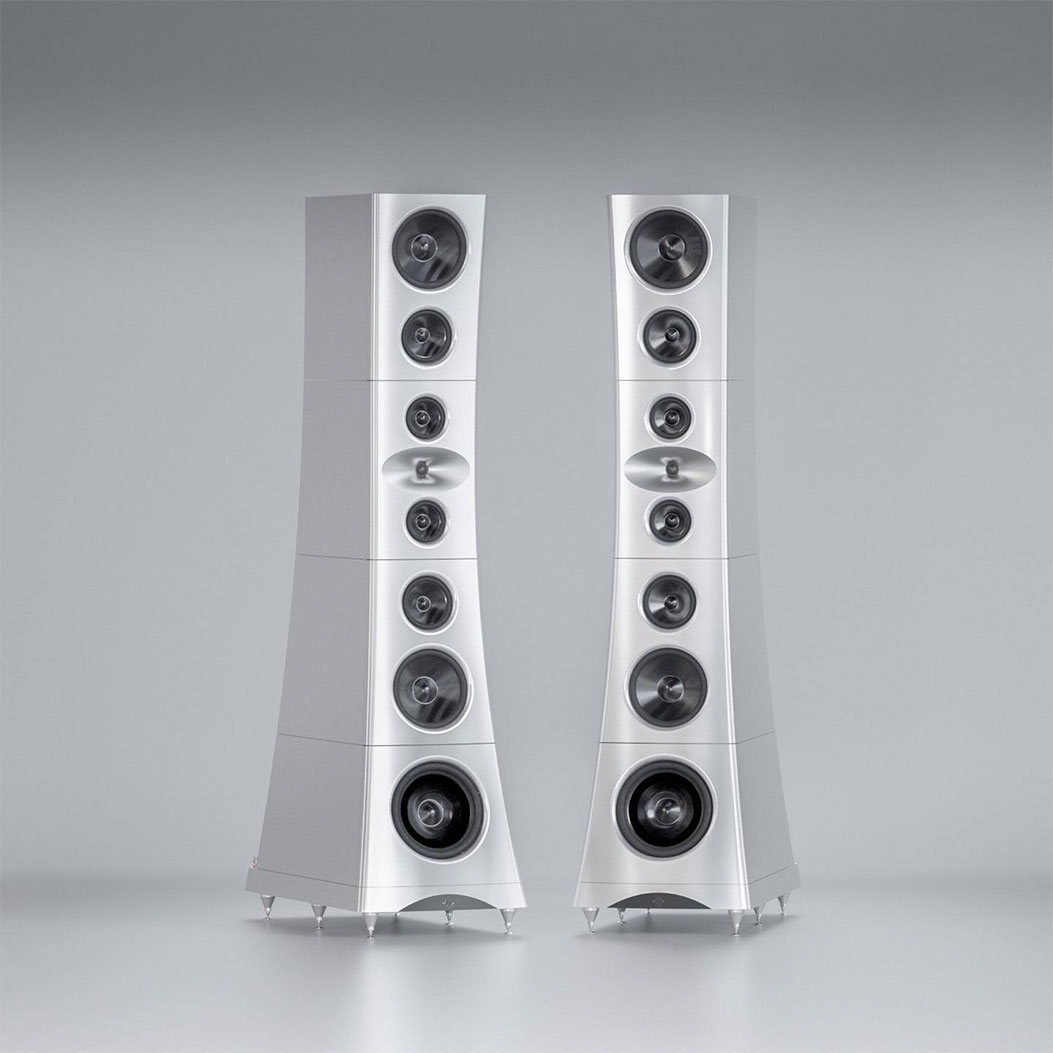

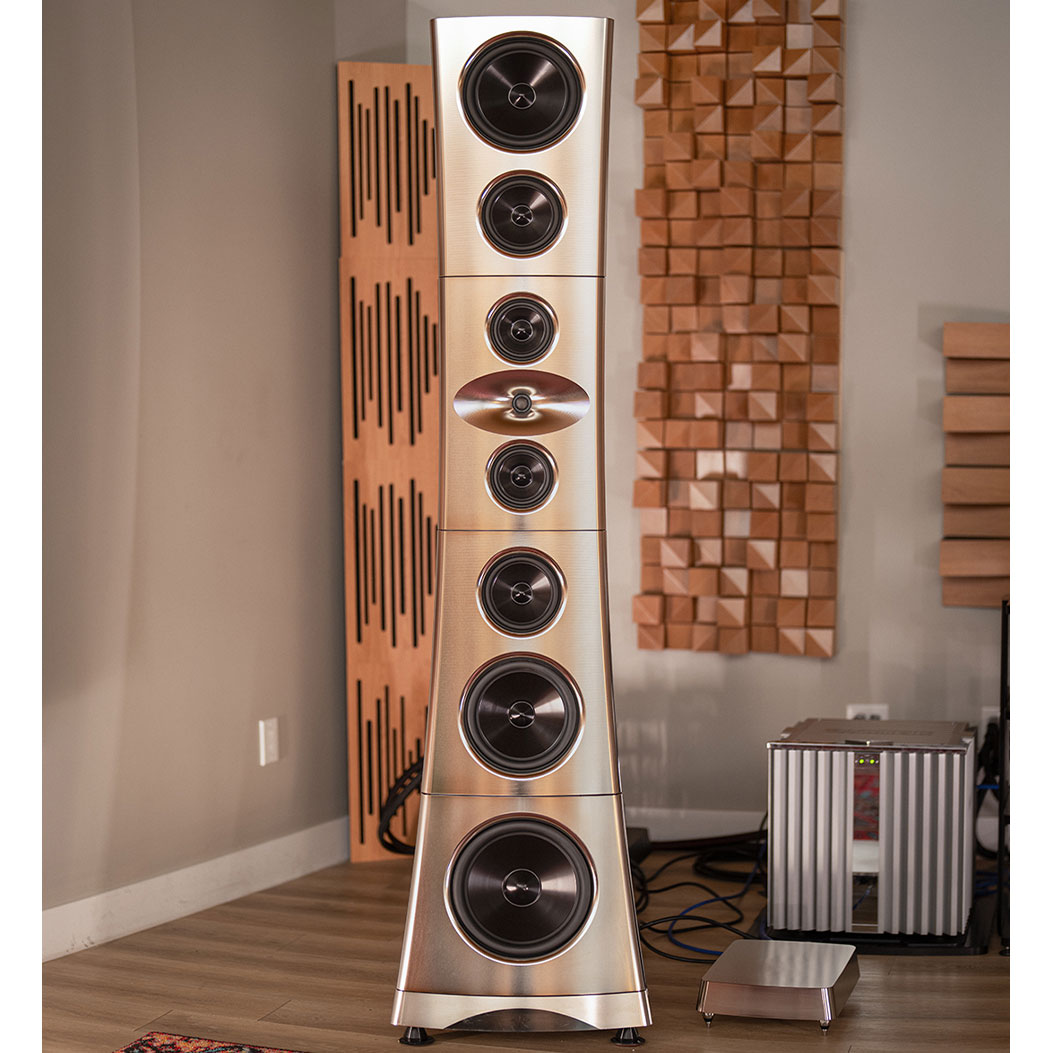

Standing over two meters tall and with each tower weighing-in at almost half a tonne, each Titan speaker houses a precisely arranged seven-driver symmetrical array supported by a custom-designed sub-bass driver.

Titan is offered in three versions:

Titan Passive: A fully passive five-way, eight-driver configuration with an external crossover, accommodating from one to five amplification channels per tower.
Titan Active Sub:Combines a fully passive four-way system with a dedicated external 1 kW amplifier for sub-bass frequencies, carefully phase- and time-aligned to blend seamlessly with the passive drivers, supporting from one to four amplification channels per tower.
Titan Live: A fully integrated audio solution, with each channel featuring an external audiophile-grade amplifier and advanced DSP crossover, all connected via glass optical fibre to the Live Controller, providing Roon-Ready streaming alongside comprehensive digital and analogue connectivity.

Categories:

Titan is offered in three versions:

Titan Passive: A fully passive five-way, eight-driver configuration with an external crossover, accommodating from one to five amplification channels per tower.
Titan Active Sub: Combines a fully passive four-way system with a dedicated external 1 kW amplifier for sub-bass frequencies, carefully phase- and time-aligned to blend seamlessly with the passive drivers, supporting from one to four amplification channels per tower.
Titan Live: A fully integrated audio solution, with each channel featuring an external audiophile-grade amplifier and advanced DSP crossover, all connected via glass optical fibre to the Live Controller, providing Roon-Ready streaming alongside comprehensive digital and analogue connectivity.

Sound wave

Speaker Type

5-way floor-standing loudspeaker
Available in passive, Active Sub and Live versions
Triple layer, aerospace aluminum cabinet with constrained layer damping

Drivers

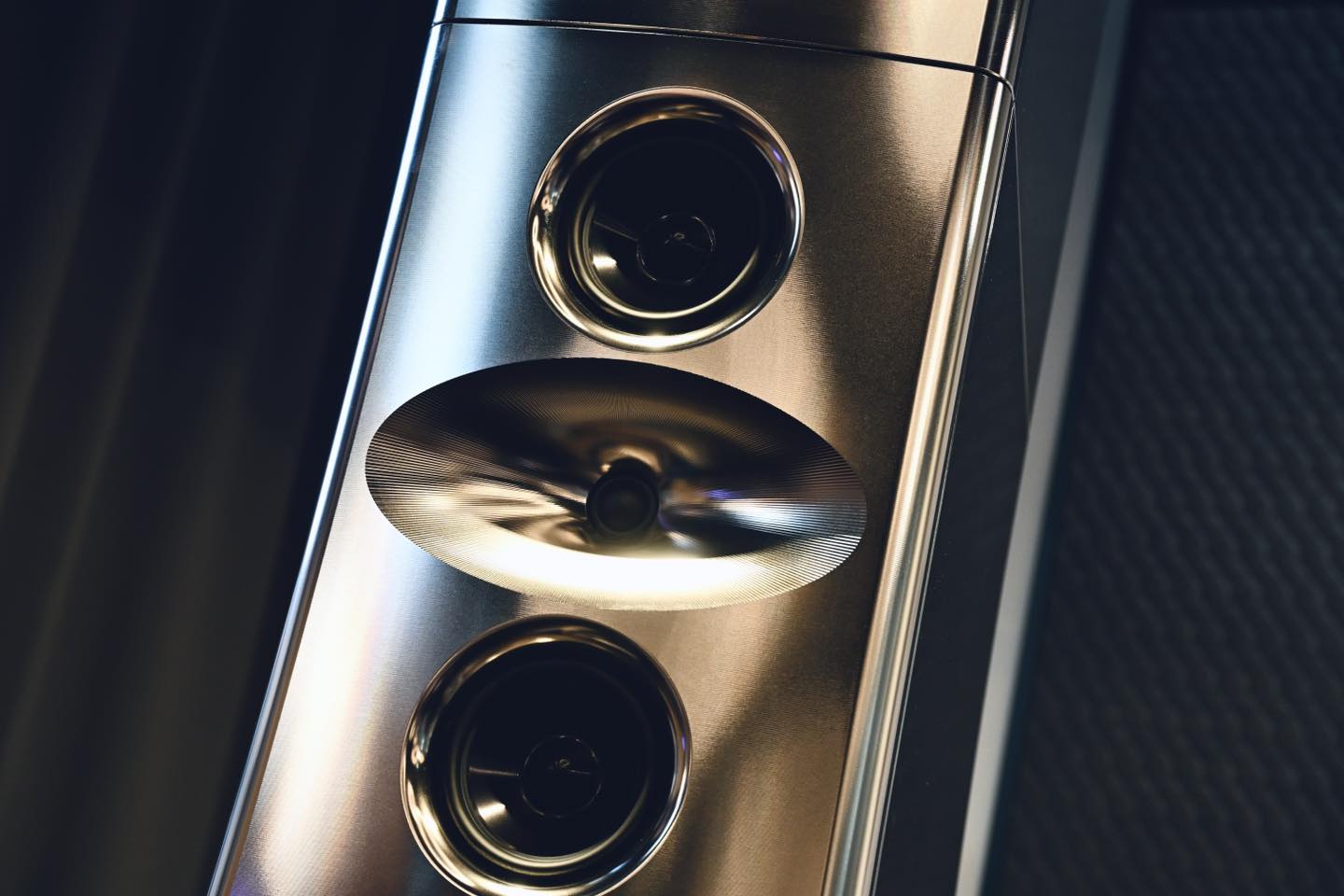

Lattice hybrid tweeter with advanced airframe
Dual 15 cm (6”) proprietary YG aluminum cone drivers, advanced neodymium motor magnets, exceptional set matching
Dual 18.5 cm (7.25”) proprietary YG aluminum cone drivers, advanced neodymium motor magnets, exceptional set matching
Dual 26 cm (10.25”) proprietary YG aluminum cone drivers, ultra-high field strength motor, exceptional set matching
32cm (12.5”) proprietary YG aluminum cone driver, ultra-high field strength motor, exceptional set matching

Configurations

Passive: External crossover with Ultracoherent circuits at 35 Hz, 90 Hz, 360 Hz and 1.85 kHz
Active Bass: External crossover with Ultracoherent circuits at 90 Hz, 360 Hz and 1.85 kHz. 1kW audiophile bass amplifier with DSP tuned crossver for 32cm driver, supporting room correction
Live: External amplifier with 8 x 700W audiophile amplifiers per tower, with optimized DSP crossover, linked by glass optical fibres to Live Controller with ROON Ready streaming, analogue and digital inputs and high quality phono stage

Passive Crossover

Custom components unique to each pair, individually optimized for frequency response, phase alignment, phase slope and transient response
Custom capacitors, including pure metal foil models and special copper alloy foil models
Exceptional components such as foil resistors, resonance-damped inductors, silver-gold alloy capacitors and OFC Litz inductors
Custom, anti-resonance PCB with low dielectric constant and dissipation factor, with optimized traces
